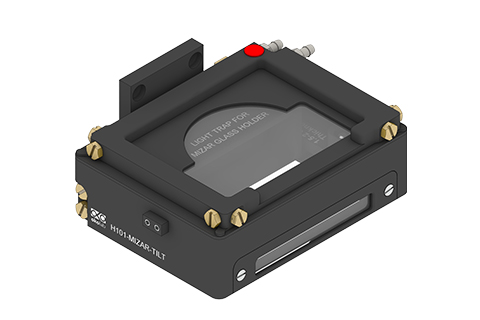

H101-MIZAR-TILT
Specially designed by Okolab for heating and cooling live specimen experiments with the Mizar Tilt modular light sheet system.
The chamber can fit:
- 35 mm Petri
- Mizar cube holder with or without guide arm
- 1x3 in. chambered slides
- Accepts Mizar cube holder and 1" x 3" slide/chamber slide by default and also 22x40 mm coverslip and 35mm petri dish with dedicated holders

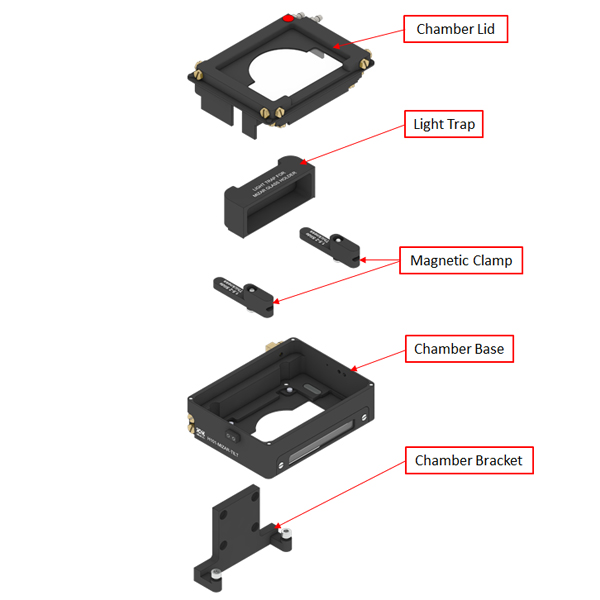

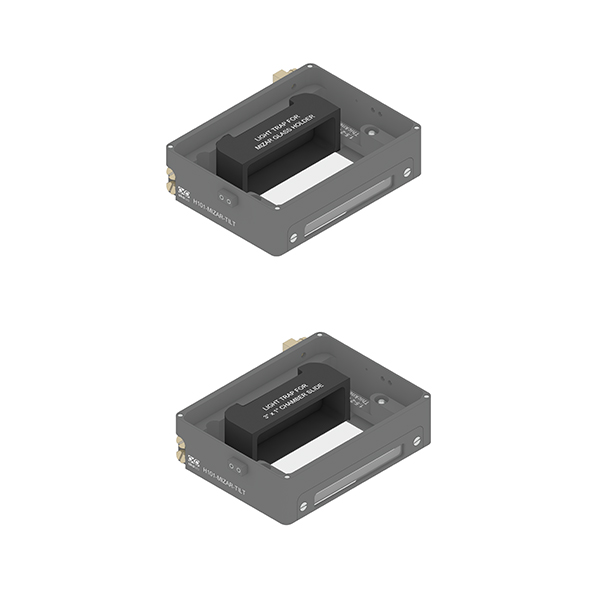

- Dedicated light trap and magnetic clamps included with each specimen holder type
- Magnets allow easy interchange of chamber inserts
Available Inserts

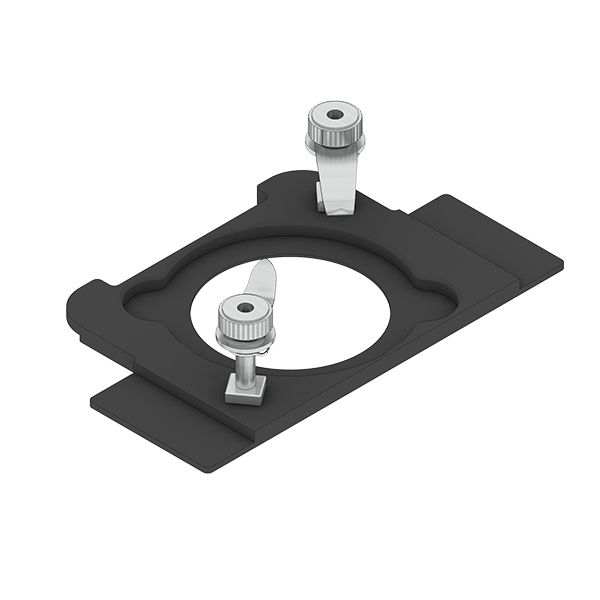

| H101-1x35-M single | #1 35mm Petri-dish |   |

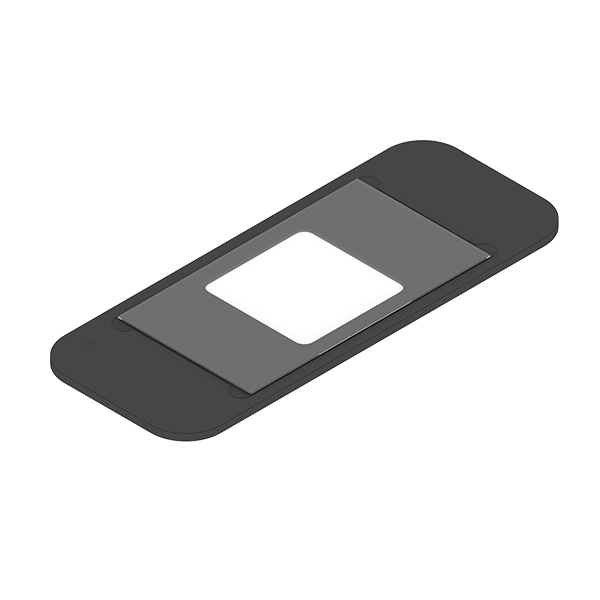

| MIZAR-1x22by40 | #1 22x40 mm coverslip |  |
