ENCLOSURE - EXAMPLES ON LEICA DMi8

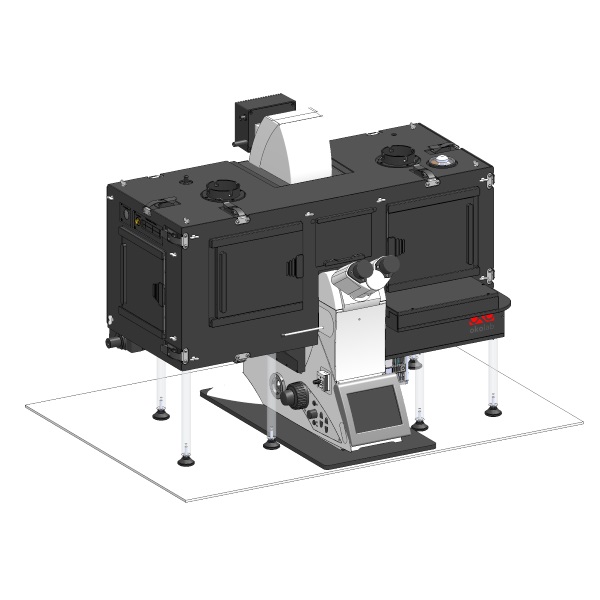

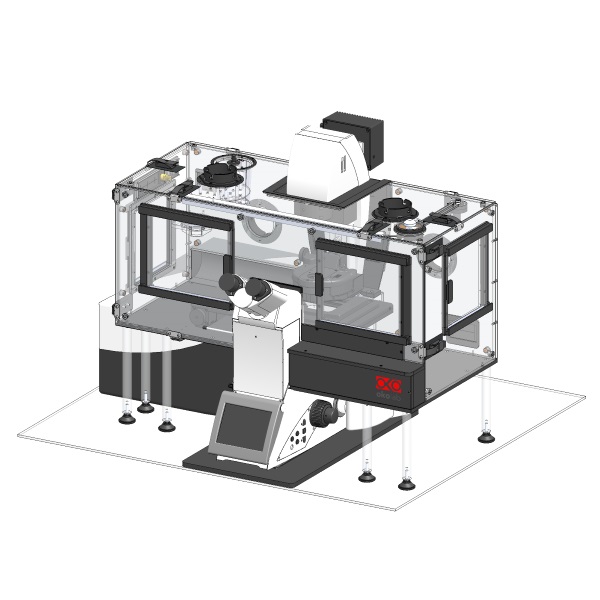

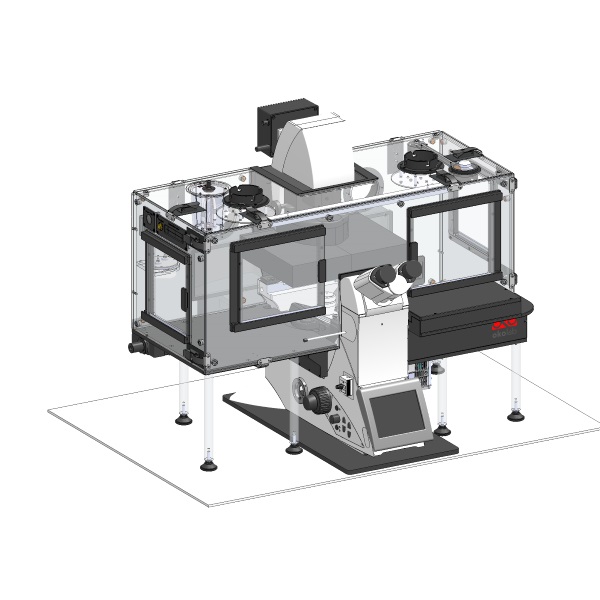

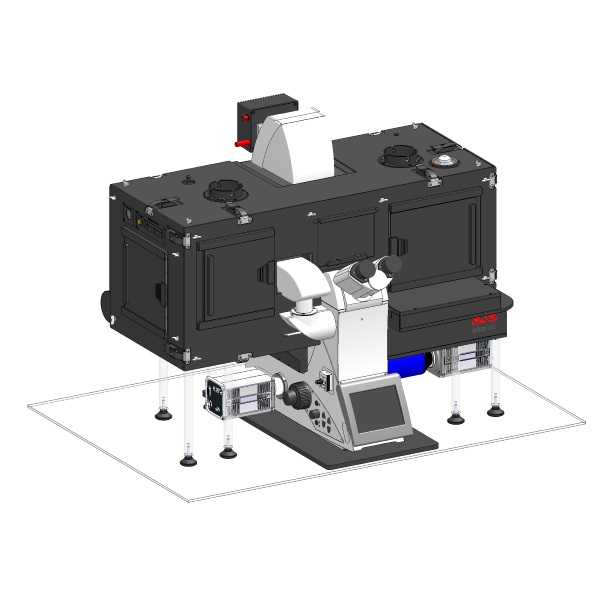

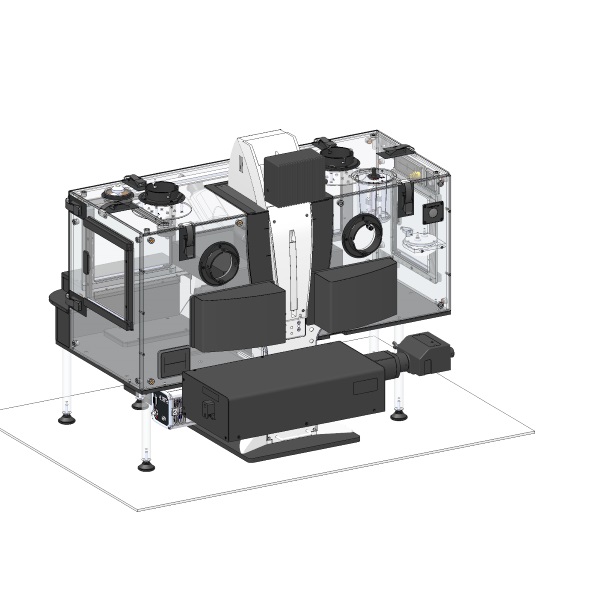

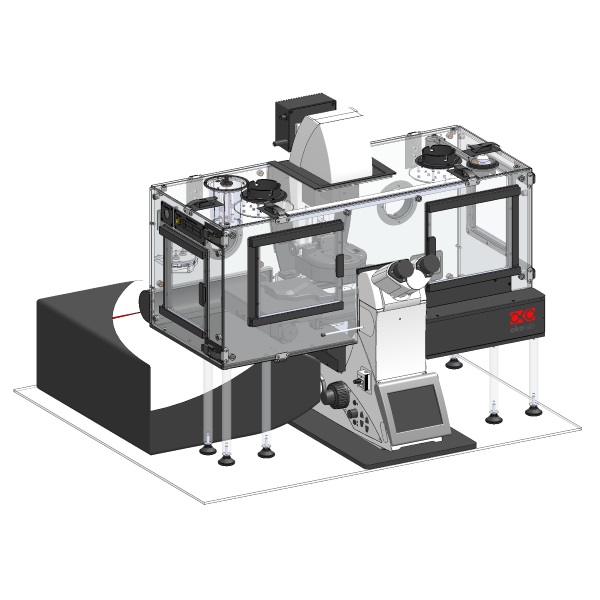

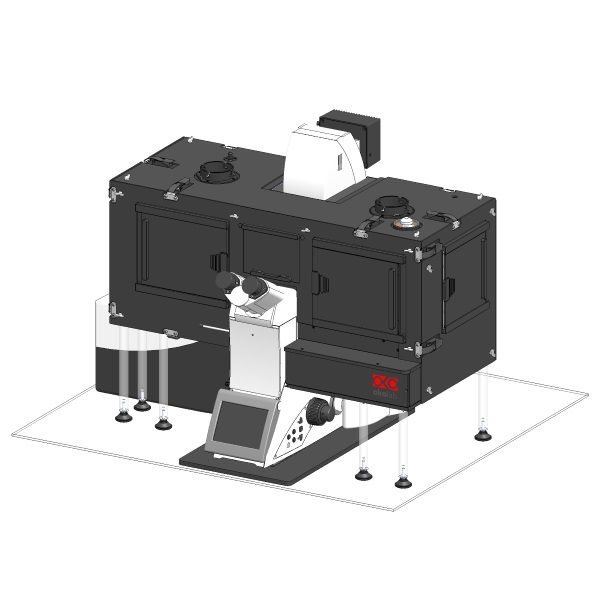

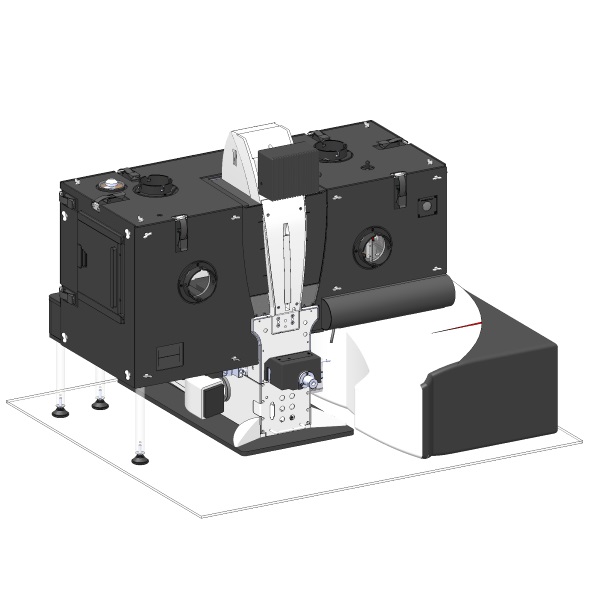

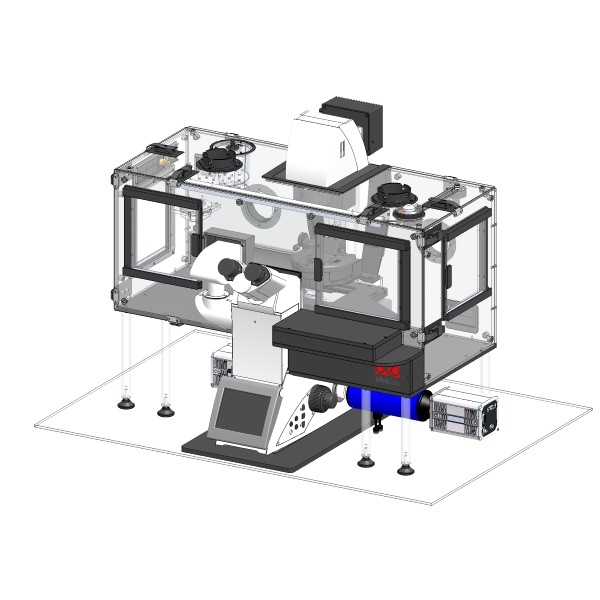

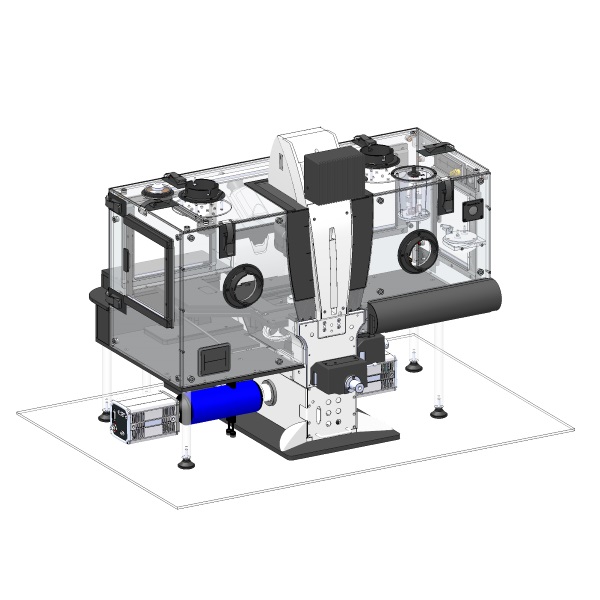

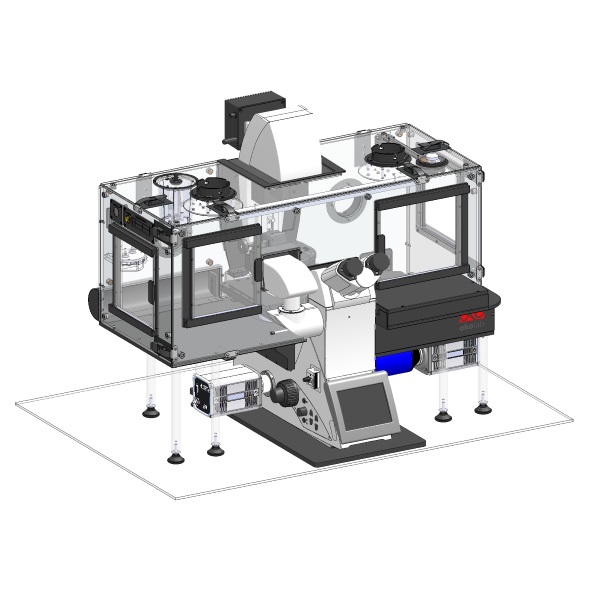

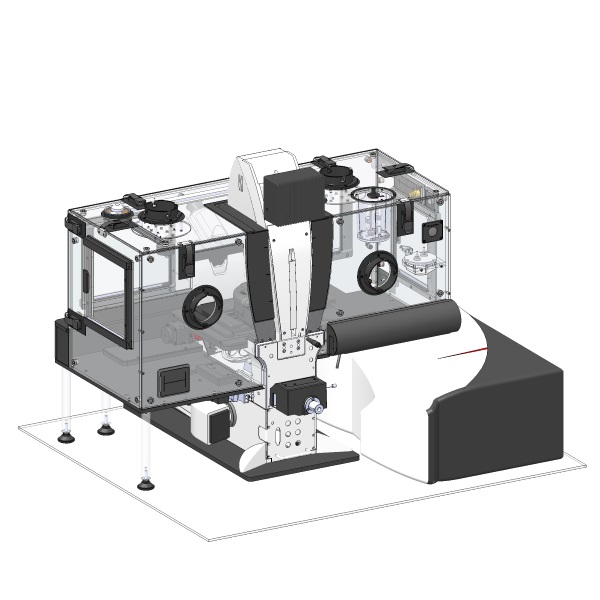

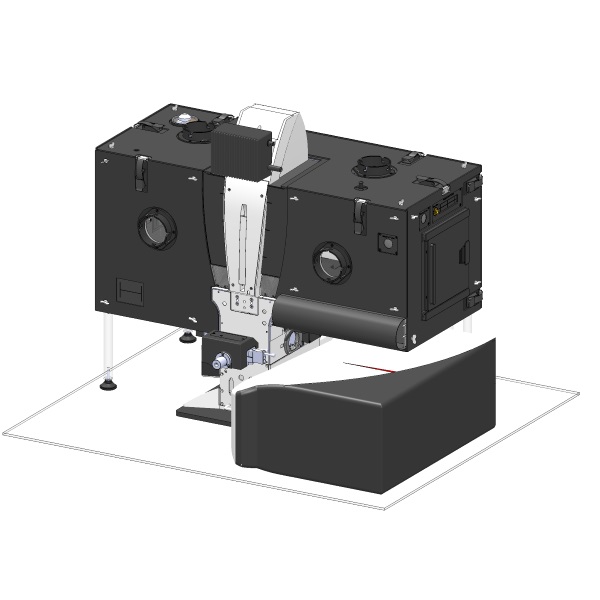

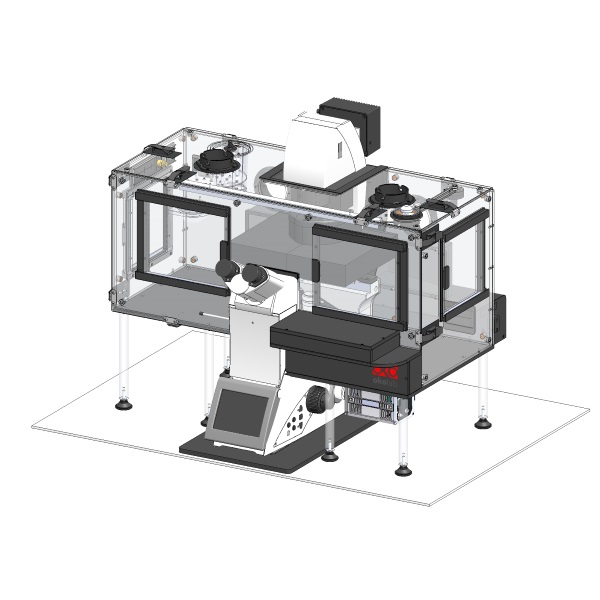

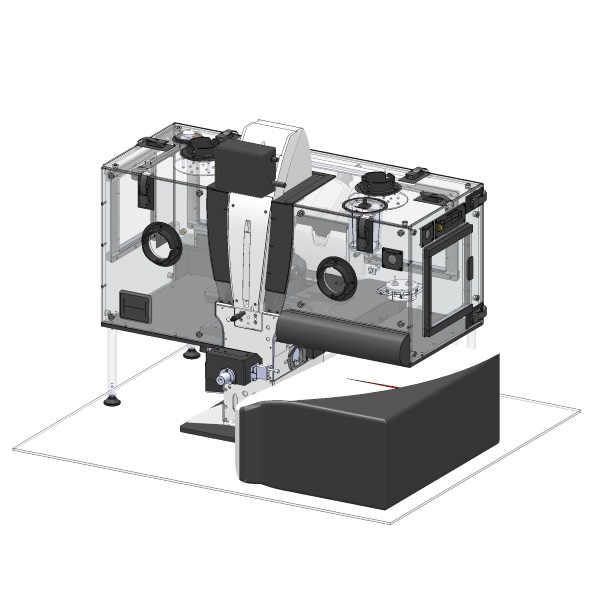

In this page we report drawings of the enclosure for three configurations, based on the microscope Leica DMi8.
| DMi8 | DMi8 - TIRF | DMi8 - TSC SP8 | |
|---|---|---|---|
| Body | Fully motorized Leica DMi8 | Fully motorized Leica DMi8 | Fully motorized Leica DMi8 |
| Eyepiece | Leica DFC365 FX camera on Trino ErgoTubes | Standard | Standard |
| XY-Stage | Motorized Stage | Motorized Stage with Leica Galvo and cover for laser safety | Motorized Stage with SuperZ Galvo Stage |
| Back Port | Lightsource #1 | Tirf Module | Lightsource |
| Left Port | Andor Zyla | Andor Zyla | SP8x |
| Right Port | Photometrics DualViewTM with an Andor Zyla | none | Leica DFC 365 FX |
| Left Port | Lightsource #2 | none | none |
| Nosepiece | Adaptive Focus Control (AFC) | Adaptive Focus Control (AFC) | Adaptive Focus Control (AFC) |
