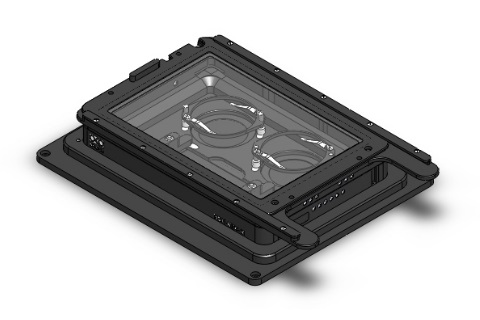

H201-OLYMPUS-IX3-SVR
Screws onto Olympus IX3-SVR Stage
Magnetic inserts allow to use:
- 35/60 mm Petri
- 1x3 in. / 1x2 in. chambered slides
- 6-12-24-48-96 MW Plates
- Sliding lid for easy pipetting
- Optional lids available for Kohler Illumination, Laser Safety, Injection during imaging
- Flexible chamber height thanks to the removable chamber riser and the optional Koheler Lid
- Magnets allow easy interchange of chamber inserts
- Magnetic locks hold Petri, Slides and MW in correct position inside the chamber
- Perfusion holes: 12 channels for 2.5mm O.D. tubings are available in the chamber riser
Available Inserts
| H201-MW-HOLDER | Multiwell plates holder |   |
| 1x35-M | #1 35mm Petri-dish |  |
| 1xGS-M | #1 1x3in. chamberslide |  |
| 1xLABTEK-M | #1 Lab-Tek 1x2 in. chambered cover glass |  |
| 1xLABTEK-II-M | #1 Lab-Tek II 1x2 in. chambered cover glass |  |
| 1x60-M | #1 60mm Petri-dish |  |
| 1xT25-M | #1 Nunc and Greiner T25 flask |  |
| 2x35-M | #2 35mm Petri-dish |  |
| 2xGS-M | #2 1x3in. chamberslides |  |
| 2xLABTEK-M | #2 Lab-Tek 1x2 in. chambered cover glass |  |
| 2xLABTEK-II-M | #2 Lab-Tek II 1x2 in. chambered cover glass |  |
| 2x60-M | #2 60mm Petri-dish |  |
| 4x35-M | #4 35mm Petri-dish |  |
| GS35-M | #1 1x3in. chamberslide and #2 35mm Petri-dish |  |
| LABTEK-35-M | #1 Lab-Tek 1x2 in. chambered cover glass and #2 35mm Petri-dish |  |
| LABTEK-II-35-M | #1 Lab-Tek II 1x2 in. chambered cover glass and #2 35mm Petri-dish |  |
| LABTEK-60-M | #1 Lab-Tek 1x2 in. chambered cover glass and #1 60mm Petri-dish |  |
| LABTEK-II-60-M | #1 Lab-Tek II 1x2 in. chambered cover glass and #1 60mm Petri-dish |  |
| GS60-M | #1 1x3in. chamberslide and #1 60mm Petri-dish |  |
| 6035-M | #1 60mm Petri-dish and #1 35mm Petri-dish |  |
Available LIDs

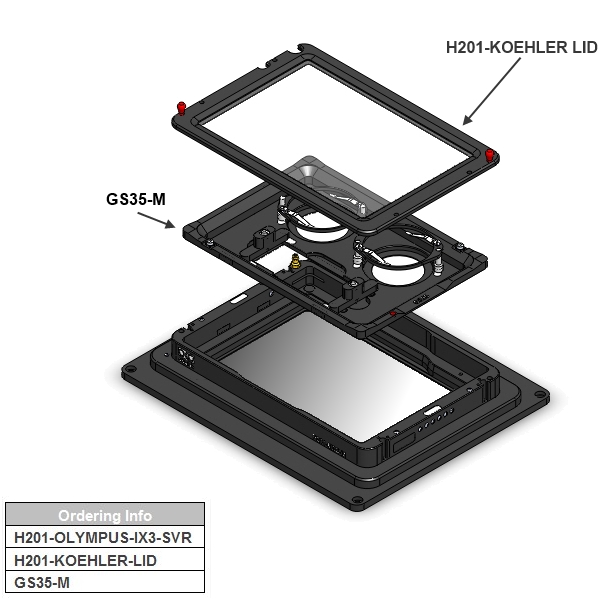

| H201-KOEHLER LID | Glass lid that reduces the height of the chamber and allows to work under Koehler illumination. Minimum condenser working distance (without chamber riser): 22mm |  |
| H201-INJECTION-LID | Glass lid with two small openings (sealed with flexible plastic) to allow injection or permanent access to the specimen Note: compatible only with specimen holder 1x35 |  |
| H201-LASER-INTERLOCK-LID | Glass lid with a safety switch that connects to the laser box. The switch turns off the laser, when the lid is lifted Note: compatible only with specimen holder 1x35 |  |

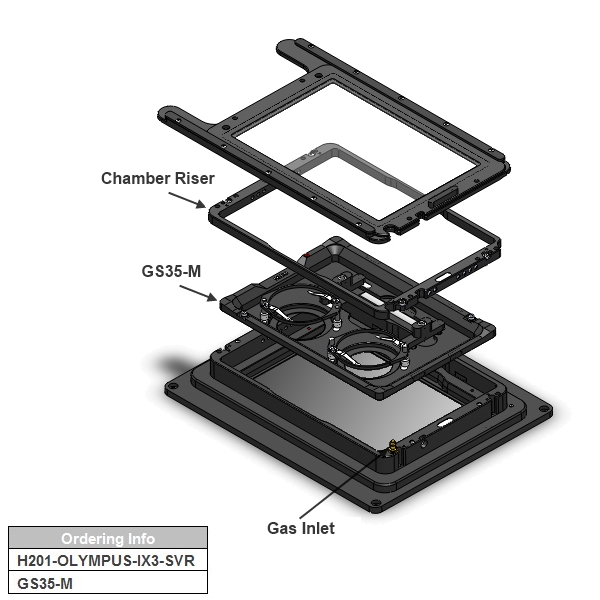

![H201-OLYMPUS-IX3-SVR-[SLIDING LID]-_600x600.jpg](/images/okaImages/product_categories/live_cell_imaging/cage_incubator/gas_chambers/h201_olympus_ix3_svr/H201-OLYMPUS-IX3-SVR-%5BSLIDING%20LID%5D-_600x600.jpg)

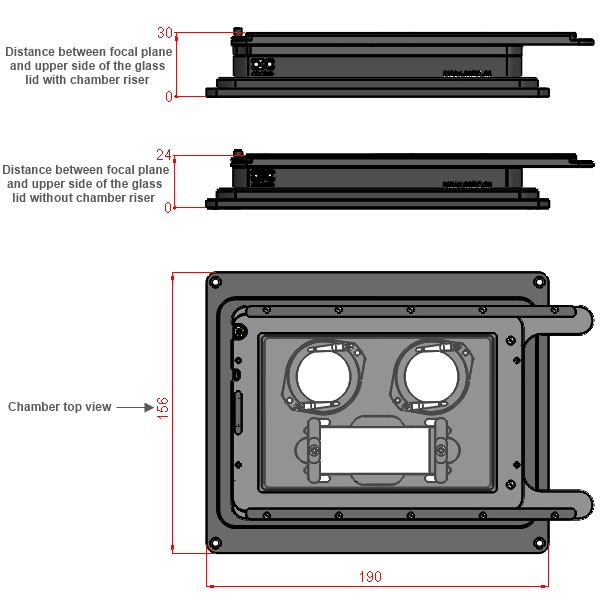

![H201-OLYMPUS-IX3-SVR-[SLIDING LID]_600x600-[DIMENSIONS].jpg](/images/okaImages/product_categories/live_cell_imaging/cage_incubator/gas_chambers/h201_olympus_ix3_svr/H201-OLYMPUS-IX3-SVR-%5BSLIDING%20LID%5D_600x600-%5BDIMENSIONS%5D.jpg)

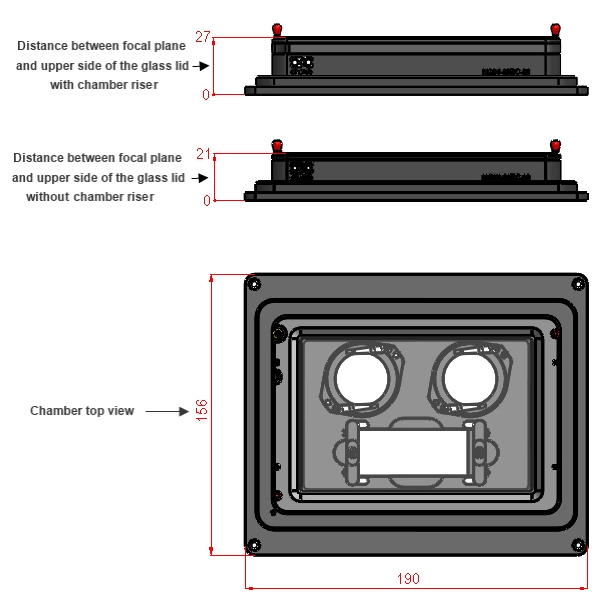

![H201-OLYMPUS-IX3-SVR-[KOEHLER-LID]_600x600[DIMENSIONS].jpg](/images/okaImages/product_categories/live_cell_imaging/cage_incubator/gas_chambers/h201_olympus_ix3_svr/H201-OLYMPUS-IX3-SVR-%5BKOEHLER-LID%5D_600x600%5BDIMENSIONS%5D.jpg)

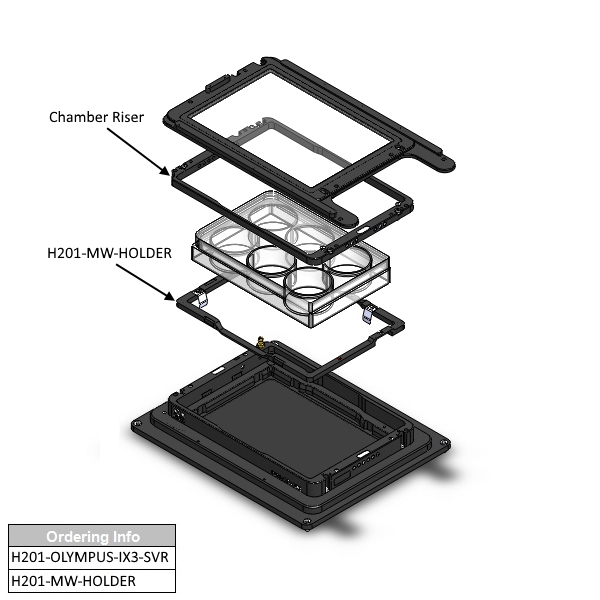

![H201-OLYMPUS-IX3-SVR-[6MW]_600x600.JPG](/images/okaImages/product_categories/live_cell_imaging/cage_incubator/gas_chambers/h201_olympus_ix3_svr/H201-OLYMPUS-IX3-SVR-%5B6MW%5D_600x600.JPG)
