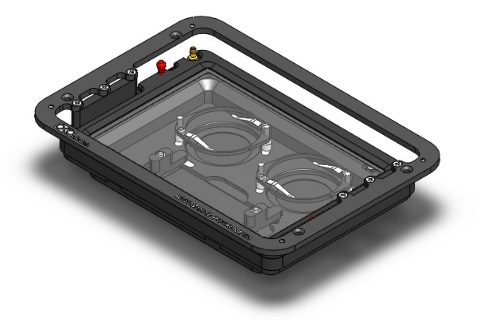

H201-PRIOR-NZ500
Stage compatibility: screws onto Prior NZ250/400/500 - comes with Koelher lid
Magnetic interchangeable inserts allow to use:
- 35/60 mm Petri
- 1x3 in. / 1x2 in. chambered slides
- 6-12-24-48-96 MW plates
- Koelher lid for working under Koehler illumination
- Optional lids available for Laser Safety, Injection during imaging
- Flexible chamber height thanks to the removable chamber riser required to fit standard multiwell plates or to perform perfusion
- Magnets allow easy interchange of chamber inserts
- Magnetic locks hold Petri and Slides and MW in correct position inside the chamber

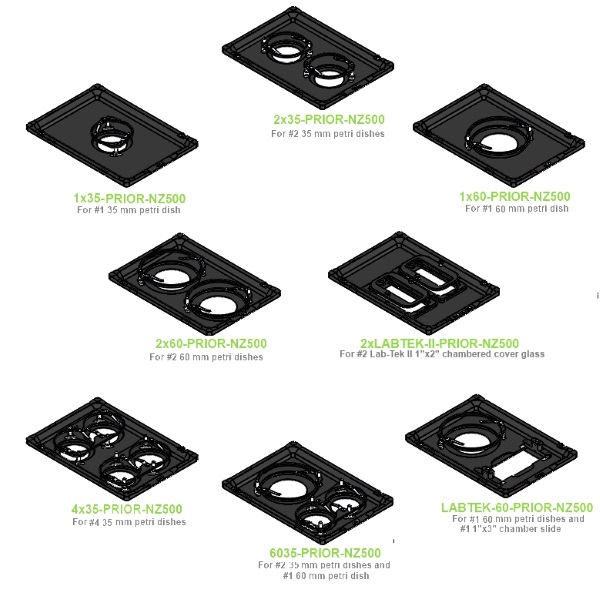

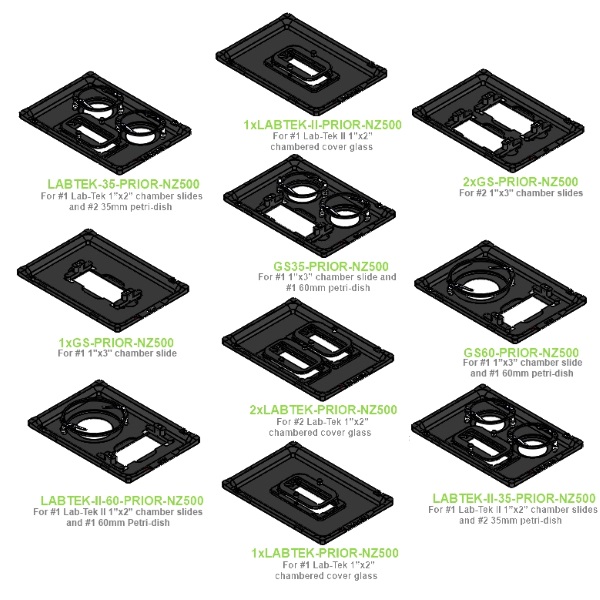

Available Inserts

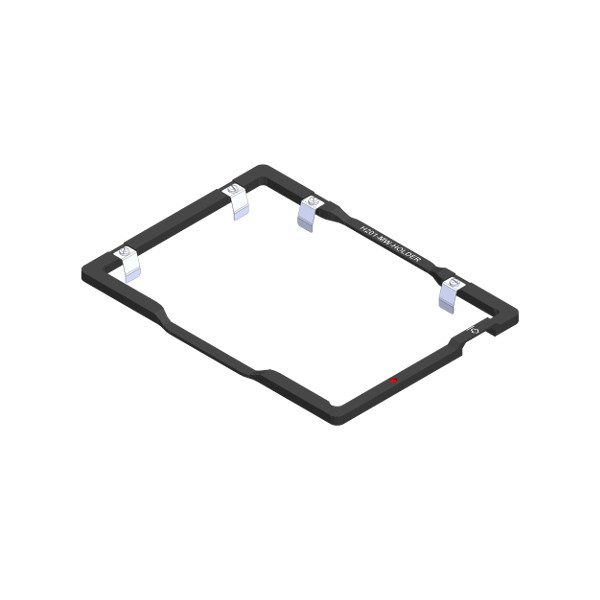

| H201-MW-HOLDER-NZ500 | Multiwell plates holder |   |
| 1x35-M | #1 35mm Petri-dish |  |

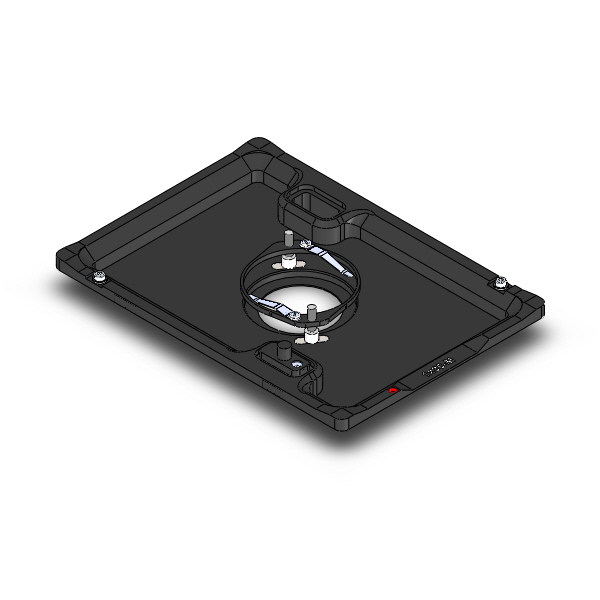

| 1x35-PRIOR-NZ500 | #1 35mm Petri-dish |  |

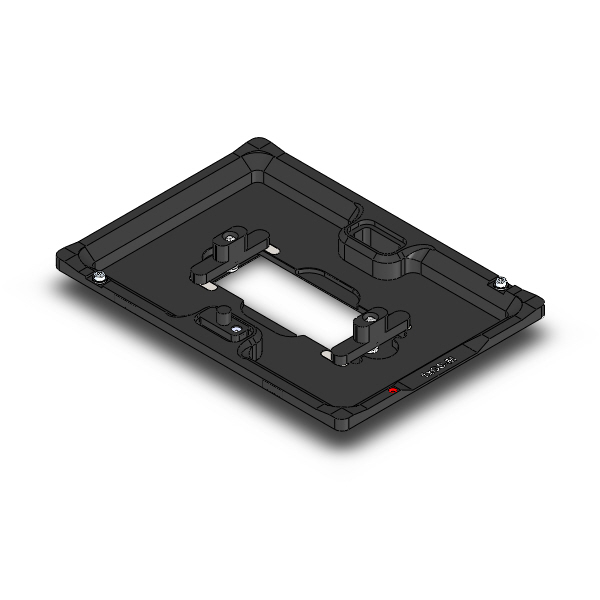

| 1xGS-PRIOR-N-NZ500 | #1 1x3in. chamberslide |  |

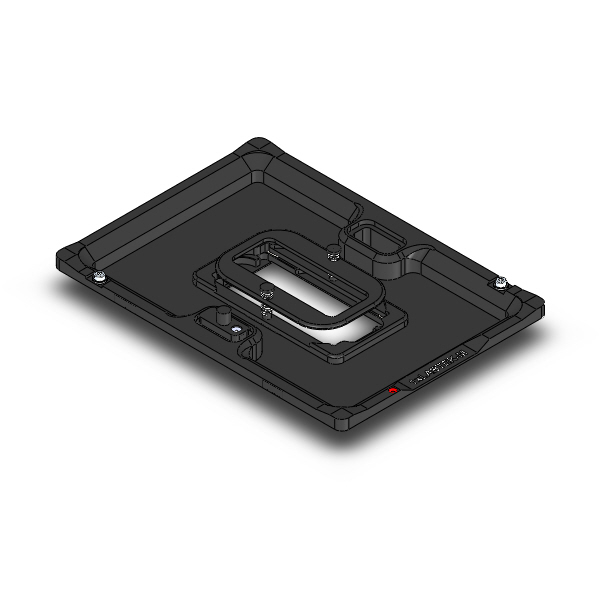

| 1xLABTEK-PRIOR-NZ500 | #1 Lab-Tek 1x2 in. chambered cover glass |  |
| 1xLABTEK-II-PRIOR-NZ500 | #1 Lab-Tek II 1x2 in. chambered cover glass |  |

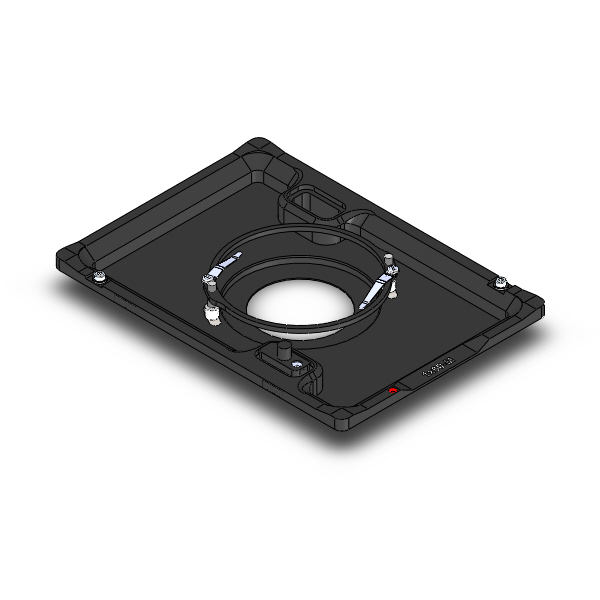

| 1x60-PRIOR-NZ500 | #1 60mm Petri-dish |  |

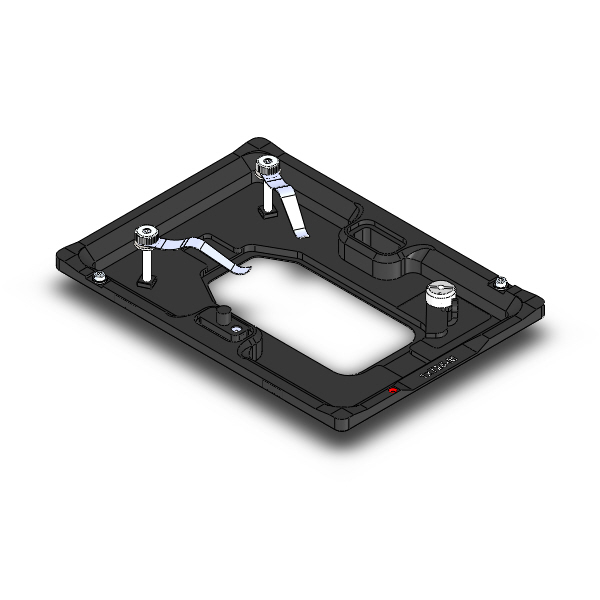

| 1xT25-PRIOR-NZ500 | #1 Nunc and Greiner T25 flask |  |

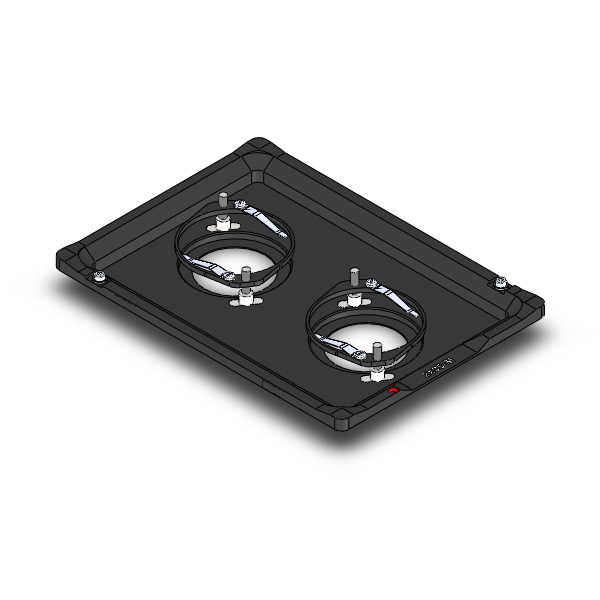

| 2x35-PRIOR-NZ500 | #2 35mm Petri-dish |  |

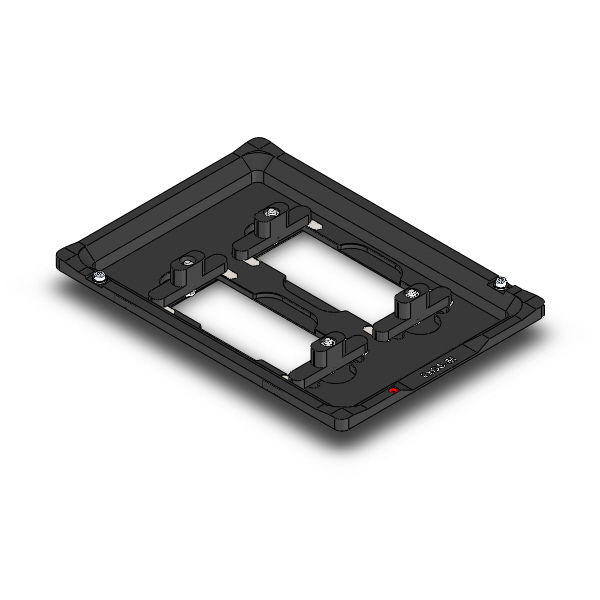

| 2xGS-PRIOR-NZ500 | #2 1x3in. chamberslides |  |

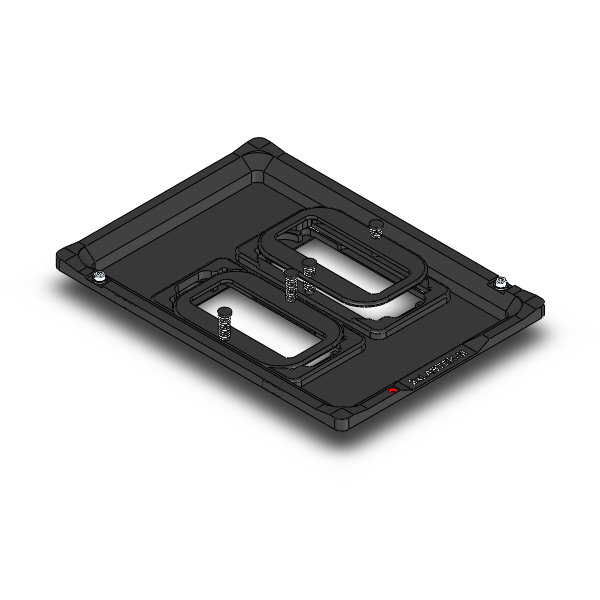

| 2xLABTEK-PRIOR-NZ500 | #2 Lab-Tek 1x2 in. chambered cover glass |  |
| 2xLABTEK-II-PRIOR-NZ500 | #2 Lab-Tek II 1x2 in. chambered cover glass |  |

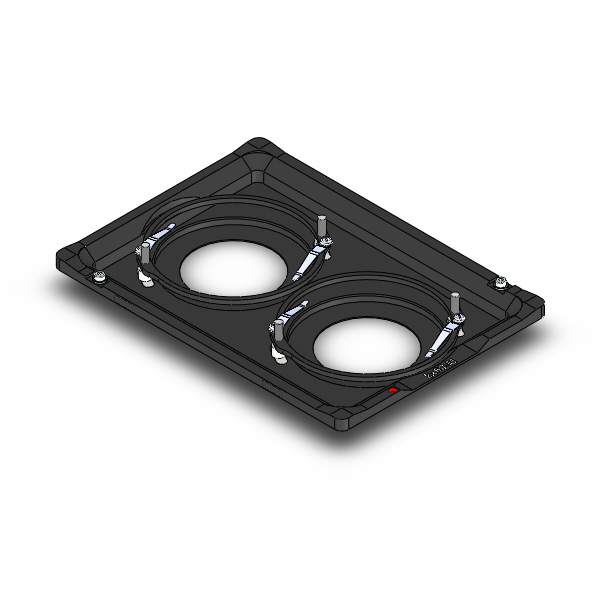

| 2x60-PRIOR-NZ500 | #2 60mm Petri-dish |  |

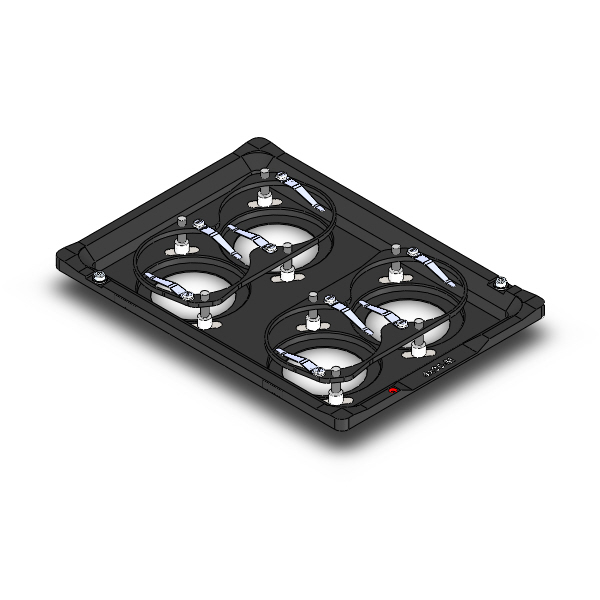

| 4x35-PRIOR-NZ500 | #4 35mm Petri-dish |  |

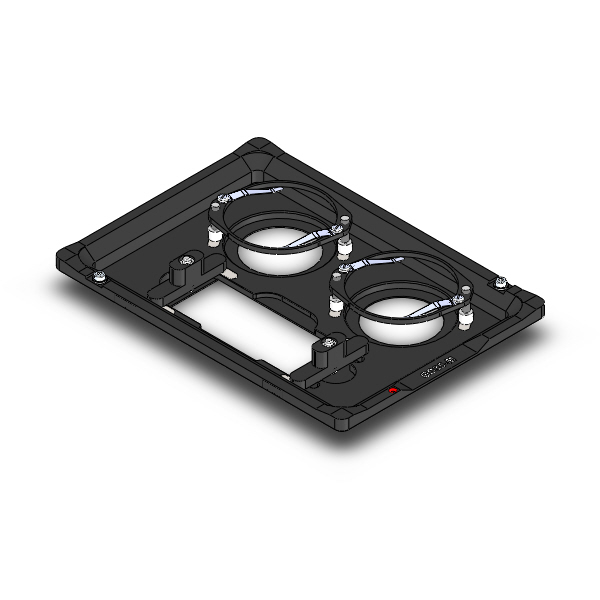

| GS35-PRIOR-NZ500 | #1 1x3in. chamberslide and #2 35mm Petri-dish |  |

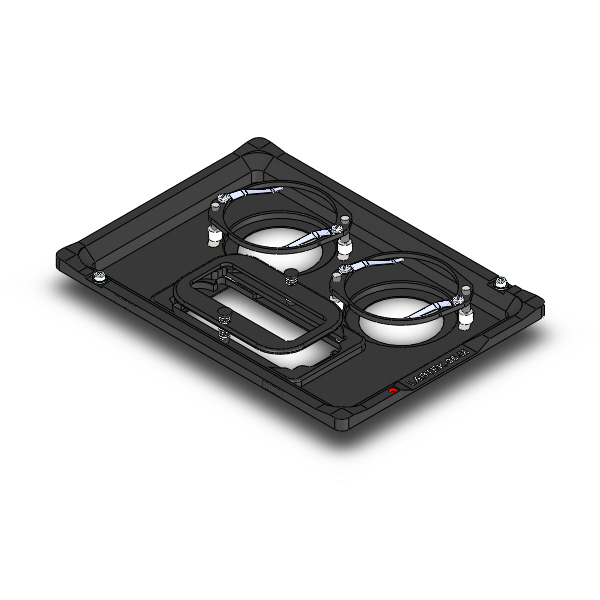

| LABTEK-35-PRIOR-NZ500 | #1 Lab-Tek 1x2 in. chambered cover glass and #2 35mm Petri-dish |  |

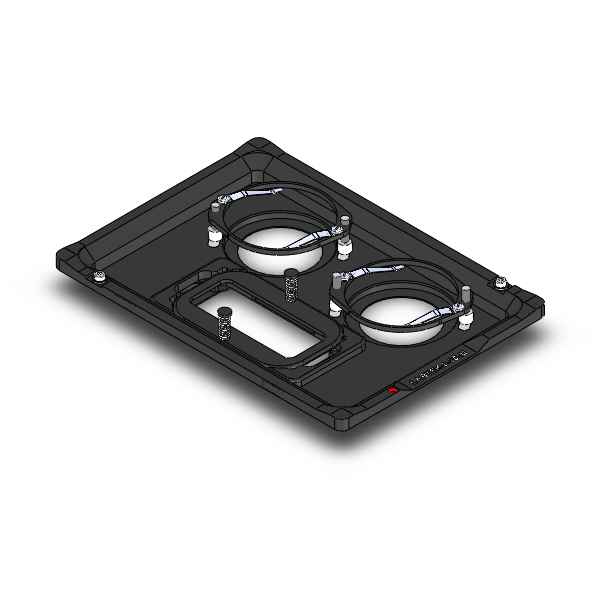

| LABTEK-II-35-PRIOR-NZ500 | #1 Lab-Tek II 1x2 in. chambered cover glass and #2 35mm Petri-dish |  |

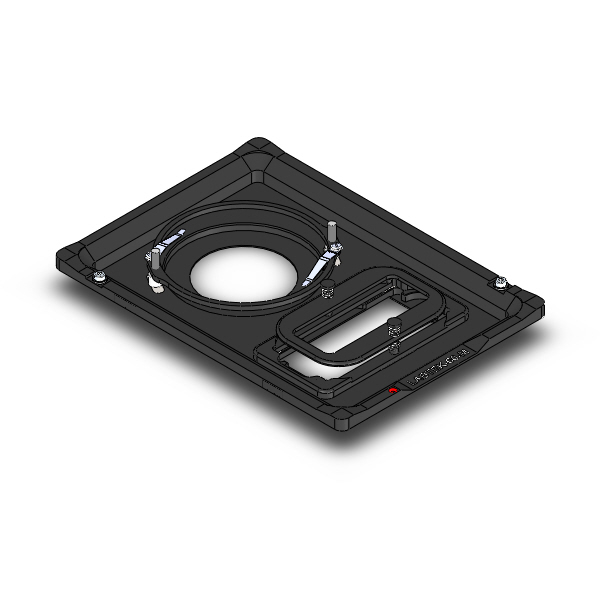

| LABTEK-60-PRIOR-NZ500 | #1 Lab-Tek 1x2 in. chambered cover glass and #1 60mm Petri-dish |  |

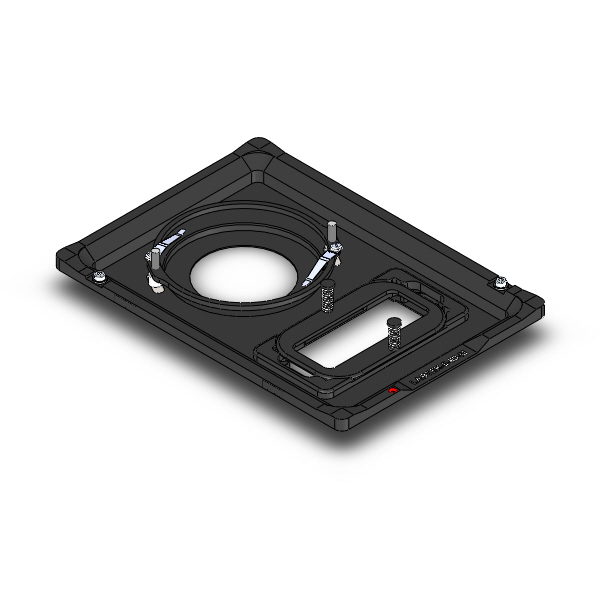

| LABTEK-II-60-PRIOR-NZ500 | #1 Lab-Tek II 1x2 in. chambered cover glass and #1 60mm Petri-dish |  |

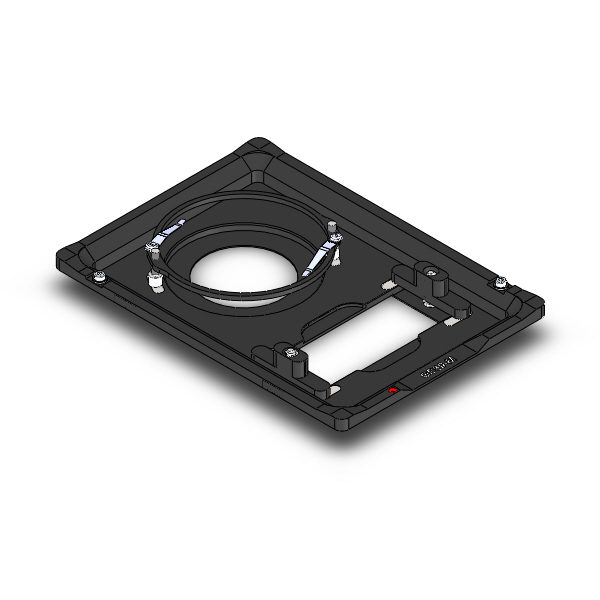

| GS60-PRIOR-NZ500 | #1 1x3in. chamberslide and #1 60mm Petri-dish |  |

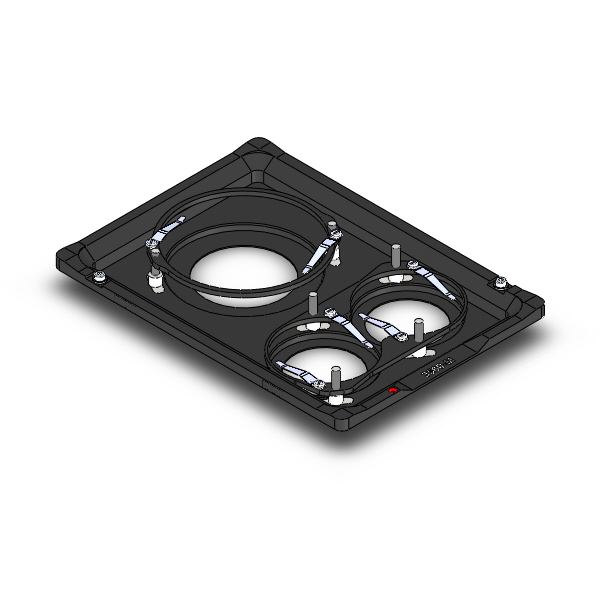

| 6035-PRIOR-NZ500 | #1 60mm Petri-dish and #1 35mm Petri-dish |  |

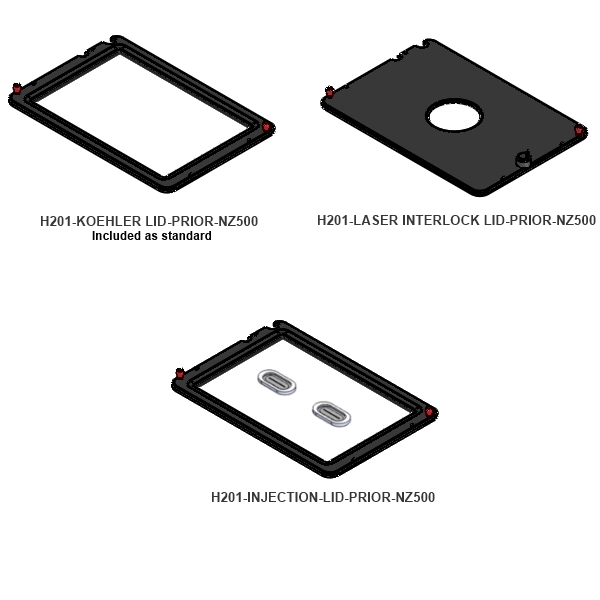

Available LIDs

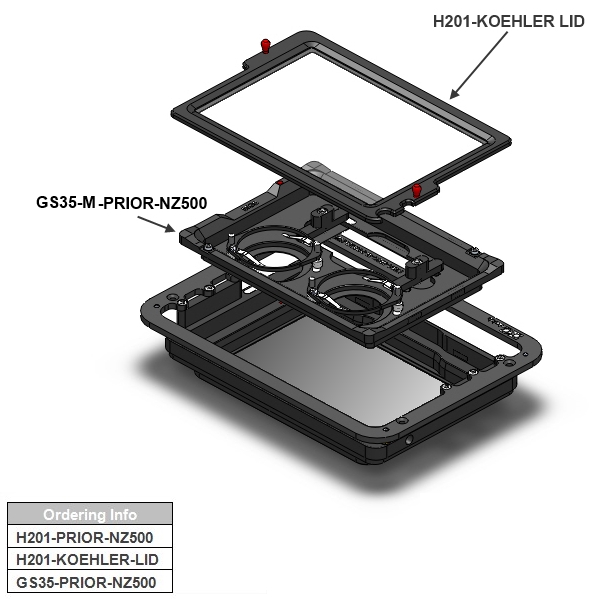

| H201-KOEHLER-LID-PRIOR-NZ500 | Glass lid that reduces the height of the chamber to 22 mm.It allows to work under Koehler illumination. |  |
| H201-INJECTION-LID-PRIOR-NZ500 | Glass lid with two small openings (sealed with flexible plastic) to allow injection or permanent access to the specimen. Note: compatible only with specimen holder 1x35 |  |
| H201-LASER-INTERLOCK-LID-PRIOR-NZ500 | Glass lid with a safety switch that connects to the laser box. The switch turns off the laser, when the lid is lifted Note: compatible only with specimen holder 1x35 |  |
![H201-PRIOR-NZ500-[KOEHLER-LID]_600x600.jpg](/images/okaImages/product_categories/live_cell_imaging/cage_incubator/gas_chambers/h201_prior_nz500/H201-PRIOR-NZ500-%5BKOEHLER-LID%5D_600x600.jpg)

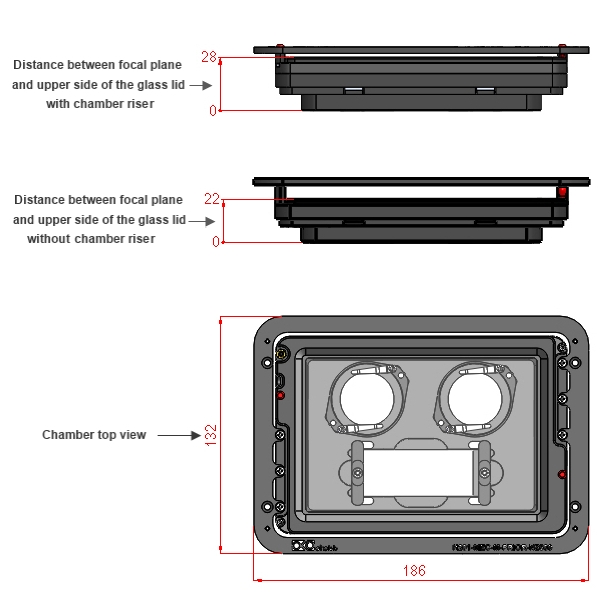

![H201-PRIOR-NZ500-[KOEHLER-LID]-[DIMENSIONS]_600x600.jpg](/images/okaImages/product_categories/live_cell_imaging/cage_incubator/gas_chambers/h201_prior_nz500/H201-PRIOR-NZ500-%5BKOEHLER-LID%5D-%5BDIMENSIONS%5D_600x600.jpg)
