H201-OLYMPUS-IX-SUSP
Screws onto Olympus rectangular stages with circular opening - comes with Sliding Lid
- IX-SUSP, GX-SVR, GX-SFR, BX3-SSU, IX2-SFR, IX2-SVL-2
Magnetic inserts allow to use:
- 35/60 mm Petri
- 1x3 in. / 1x2 in. chambered slides
Features:
- Sliding lid for easy pipetting
- Optional lids available for Kohler Illumination, Laser Safety, Injection during imaging
- Flexible chamber height thanks to the removable chamber riser and the optional Koheler Lid
- Magnets allow easy interchange of chamber inserts
- Magnetic locks hold Petri and Slides in correct position inside the chamber
- Perfusion holes: 8 channels for 2.5mm O.D. tubings are available in chamber riser
Available Inserts
| 1x35-M-single | #1 35mm Petri-dish |   |
| 1xGS-M-single | #1 1x3in. chamberslide |  |
| 1xLABTEK-M-single | #1 Lab-Tek 1x2 in. chambered cover glass |  |
| 1xLABTEK-II-M-single | #1 Lab-Tek II 1x2 in. chambered cover glass |  |
| 1x60-M-single | #1 60mm Petri-dish |  |
Available LIDs
| H201-KOEHLER-LID-2 | Glass lid that reduces the height of the chamber to 22 mm.It allows to work under Koehler illumination |  |
| H201-INJECTION-LID-2 | Glass lid with two small openings (sealed with flexible plastic) to allow injection or permanent access to the specimen Note: compatible only with specimen holder 1x35 |  |
| H201-LASER-INTERLOCK-LID-2 | Glass lid with a safety switch that connects to the laser box. The switch turns off the laser, when the lid is lifted Note: compatible only with specimen holder 1x35 |  |

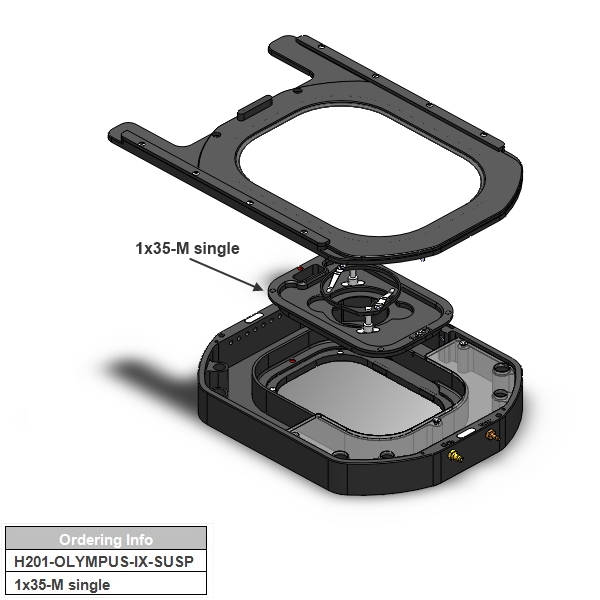

![H201-OLYMPUS-IX-SUSP_600x600-[Exploded].jpg](/images/okaImages/product_categories/live_cell_imaging/cage_incubator/gas_chambers/h201_olympus_ix_susp/H201-OLYMPUS-IX-SUSP_600x600-%5BExploded%5D.jpg)

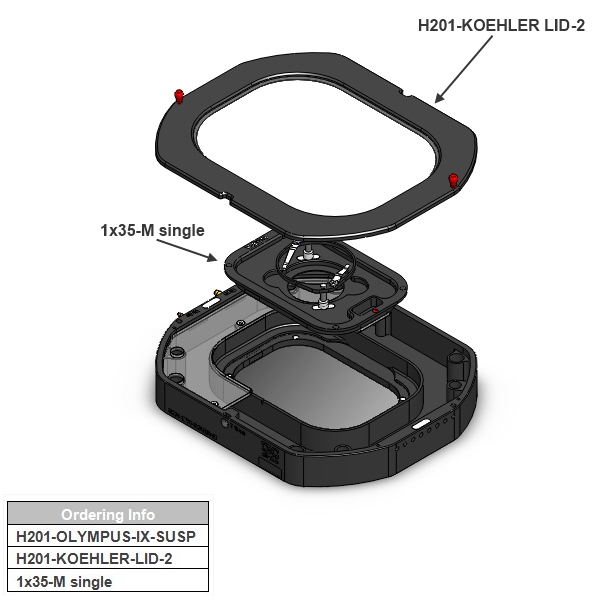

![H201-OLYMPUS-IX-SUSP_600x600-[KOEHLER-LID]-[Exploded].jpg](/images/okaImages/product_categories/live_cell_imaging/cage_incubator/gas_chambers/h201_olympus_ix_susp/H201-OLYMPUS-IX-SUSP_600x600-%5BKOEHLER-LID%5D-%5BExploded%5D.jpg)
