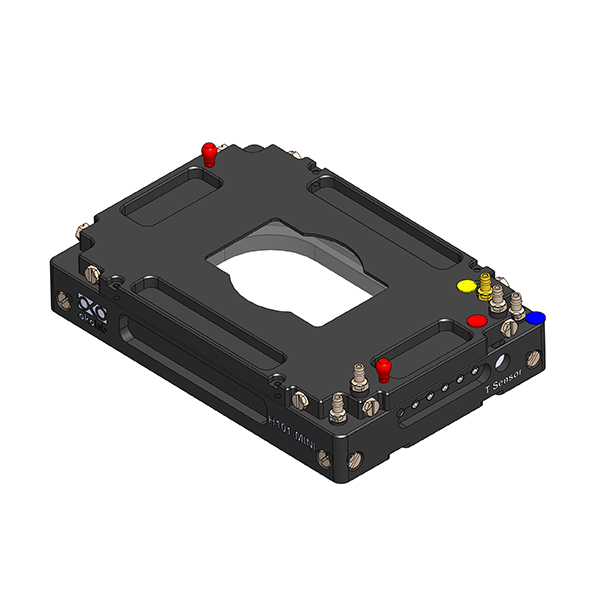

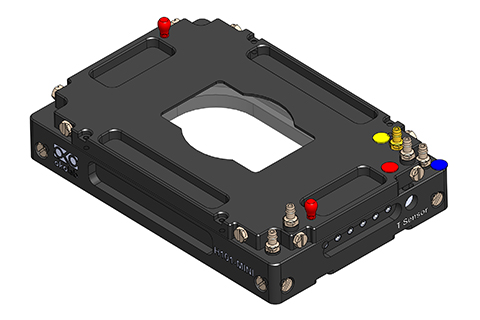

H101-MINI
Stage compatibility: fits in any holder for MW plate and in Physik Instrumente PI P-737

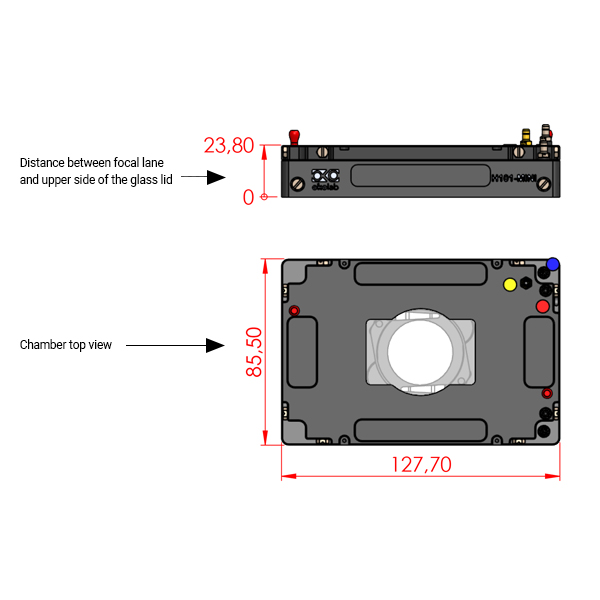

- H101-MINI has the footprint of a Multi Well Plate
- Fits in any stage equipped with MW holder
- Fits in Physik Instrumente P-737
The chamber can fit:
- 35/60 mm Petri
- 1x3 in. / 1x2 in. chambered slides

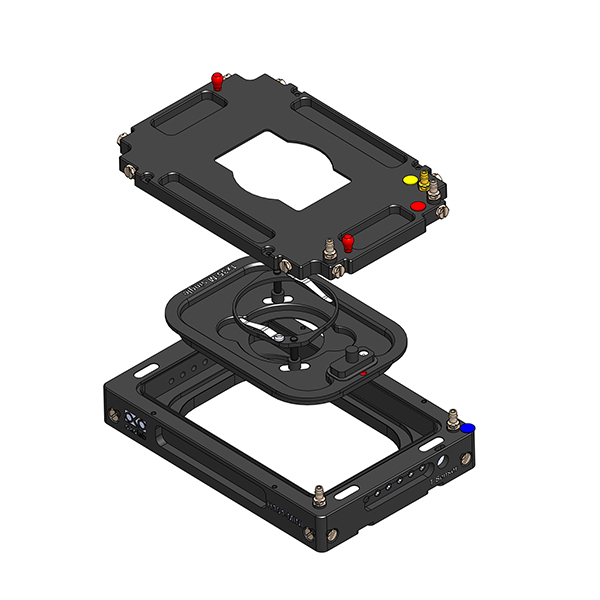

- Magnets allow easy interchange chamber inserts
- Perfusion holes: 12 channels for 2.5mm O.D. tubings are available
Available Inserts

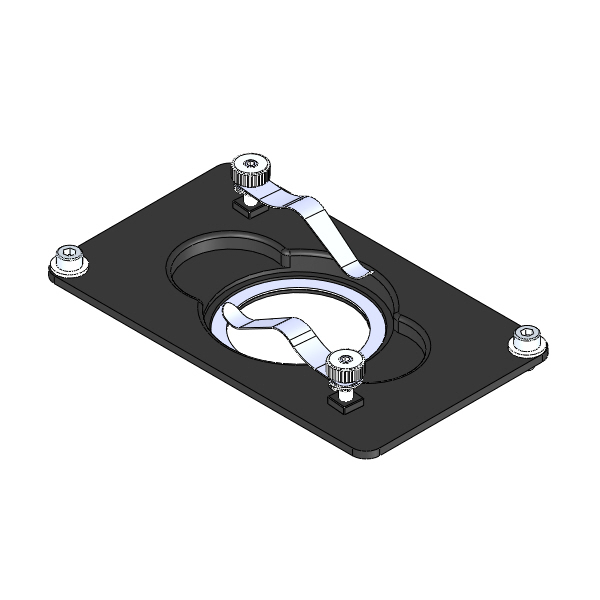

| H101-1x35-M single | #1 35mm Petri-dish |   |
| 1xGS-M-SINGLE | #1 1x3in. chamberslide |  |
| 1xLABTEK-M-SINGLE | #1 Lab-Tek 1x2 in. chambered cover glass | |
| 1xLABTEK-II-M-SINGLE | #1 Lab-Tek II 1x2 in. chambered cover glass | |
| 1x60-M-SINGLE | #1 60mm Petri-dish | |
