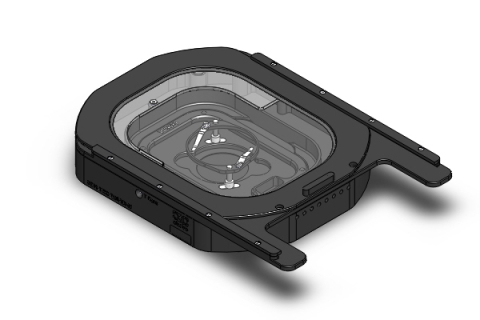

H201-NIKON-TI-SR
Screws onto Nikon T and Ti-SR - comes with Sliding Lid
Magnetic inserts allow to use:
- 35/60 mm Petri
- 1x3 in. / 1x2 in. chambered slides
- Sliding lid for easy pipetting
- Optional lids available for Kohler Illumination, Laser Safety, Injection during imaging
- Flexible chamber height thanks to the removable chamber riser and the optional Koheler Lid
- Magnets allow easy interchange of chamber inserts
- Magnetic locks hold Petri and Slides in correct position inside the chamber
- Perfusion holes: 8 channels for 2.5mm O.D. tubings are available in chamber riser.
- The chamber screws onto the Nikon T and Ti-SR rectangular stage with circular opening
Available Inserts
| 1x35-M-single | #1 35mm Petri-dish |   |
| 1xGS-M-single | #1 1x3in. chamberslide |  |
| 1xLABTEK-M-single | #1 Lab-Tek 1x2 in. chambered cover glass |  |
| 1xLABTEK-II-M-single | #1 Lab-Tek II 1x2 in. chambered cover glass |  |
| 1x60-M-single | #1 60mm Petri-dish |  |
Available LIDs
| H201-KOEHLER-LID-2 | Glass lid that reduces the height of the chamber to 22 mm.It allows to work under Koehler illumination |  |
| H201-INJECTION-LID-2 | Glass lid with two small openings (sealed with flexible plastic) to allow injection or permanent access to the specimen Note: compatible only with specimen holder 1x35 |  |
| H201-LASER-INTERLOCK-LID-2 | Glass lid with a safety switch that connects to the laser box. The switch turns off the laser, when the lid is lifted Note: compatible only with specimen holder 1x35 |  |
