Okolab - H101-PRIOR-H117

Stage compatibility: PRIOR H117

Magnetic interchangeable inserts allow to use:

Features:

Chamber heated by means water circulation in water tight channels present in the main body and in the lid

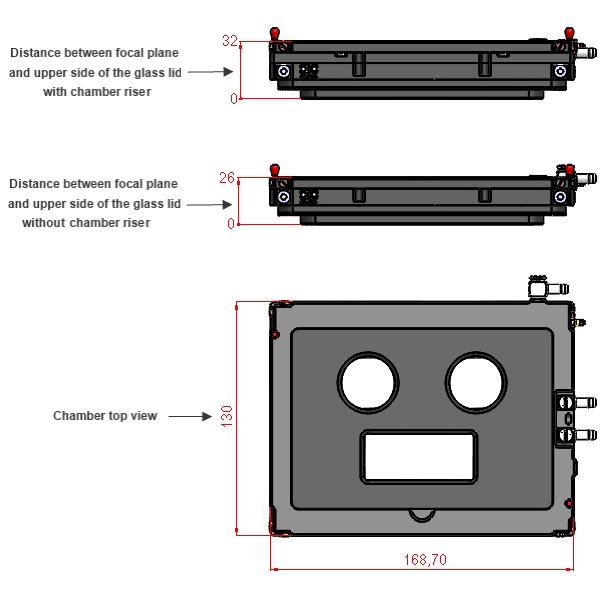

Flexible chamber height thanks to the removable chamber riser
Magnets allow easy interchange chamber inserts
It contains also an insert for oil immersion imaging
Magnetic locks hold Petri, Slides and MW in correct position inside the chamber
Perfusion holes: 12 channels for 2.5mm O.D. tubings are available in the chamber riser

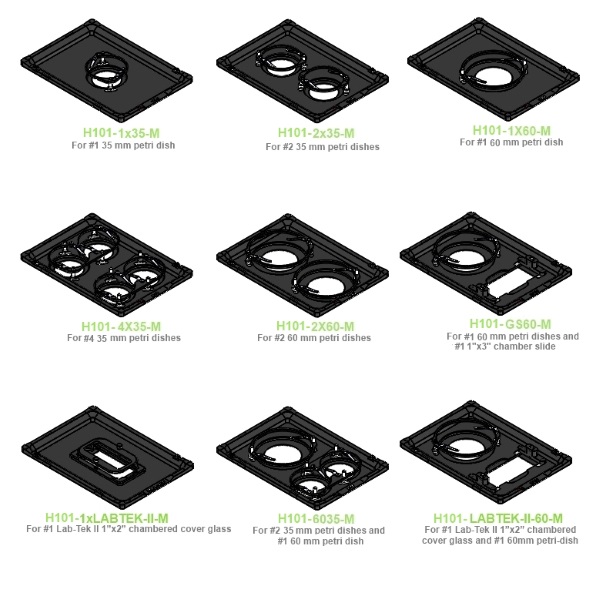

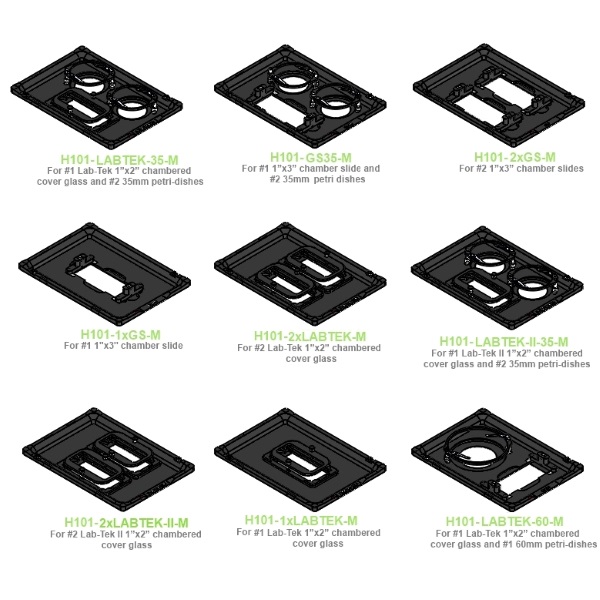

Available Inserts

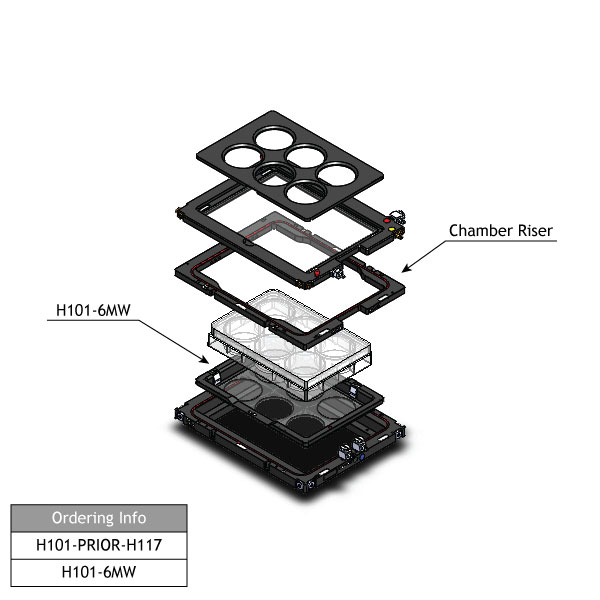

H101-6MW	6 well plates
H101-12MW	12 well plates
H101-24MW	24 well plates
H101-24MW-NUNC	24-well NUNC/GREINER plates
H101-48MW	48-well plates
H101-96MW	96-well plates
H101-1x35-M	#1 35mm Petri-dish
H101-1xGS-M	#1 1x3in. chamberslide
H101-1xLABTEK-M	#1 Lab-Tek 1x2 in. chambered cover glass

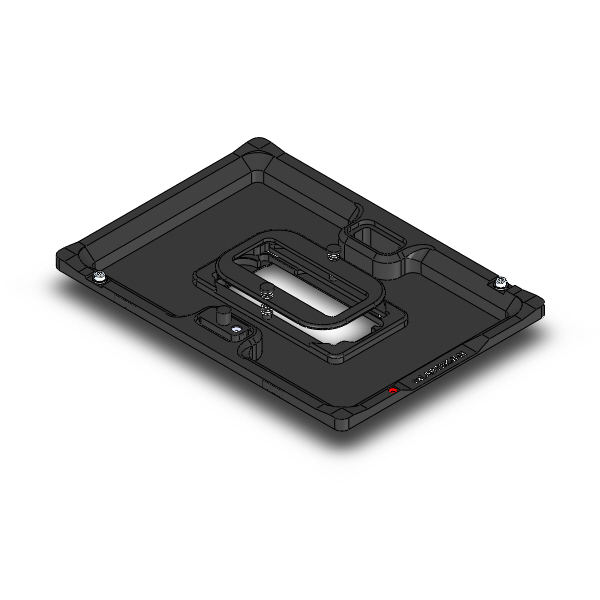

H101-1xLABTEK-II-M	#1 Lab-Tek II 1x2 in. chambered cover glass

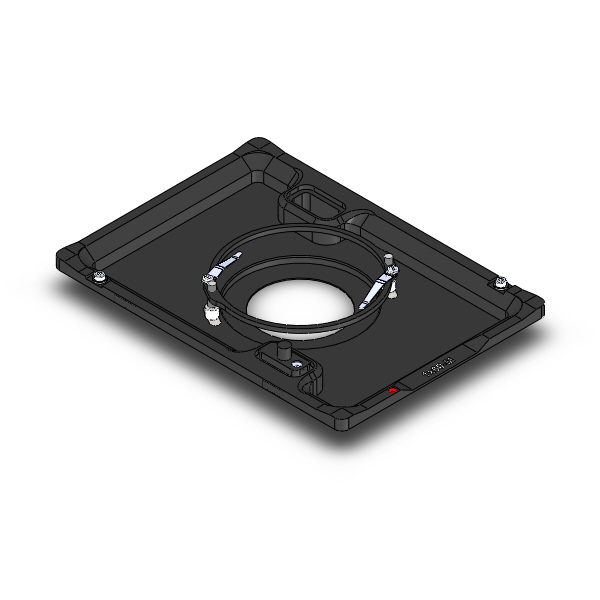

H101-1x60-M	#1 60mm Petri-dish
H101-1xT25-M	#1 Nunc and Greiner T25 flask

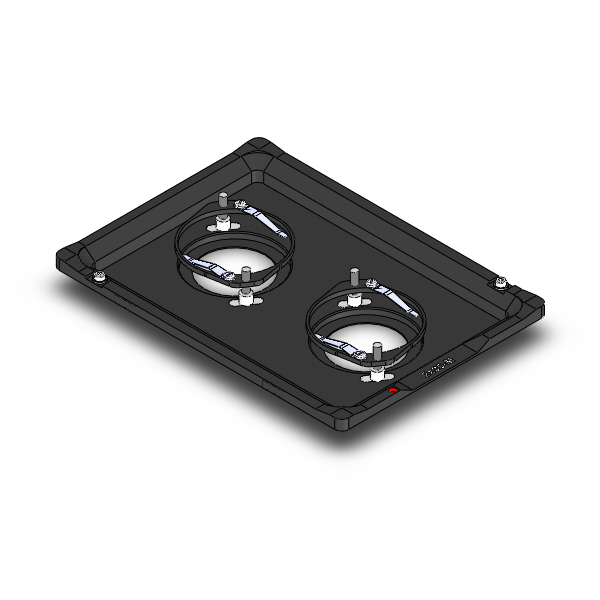

H101-2x35-M	#2 35mm Petri-dish
H101-2xGS-M	#2 1x3in. chamberslides

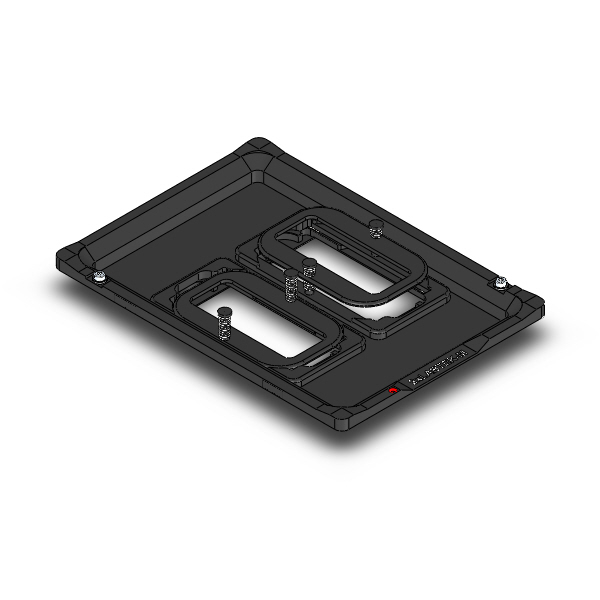

H101-2xLABTEK-M	#2 Lab-Tek 1x2 in. chambered cover glass

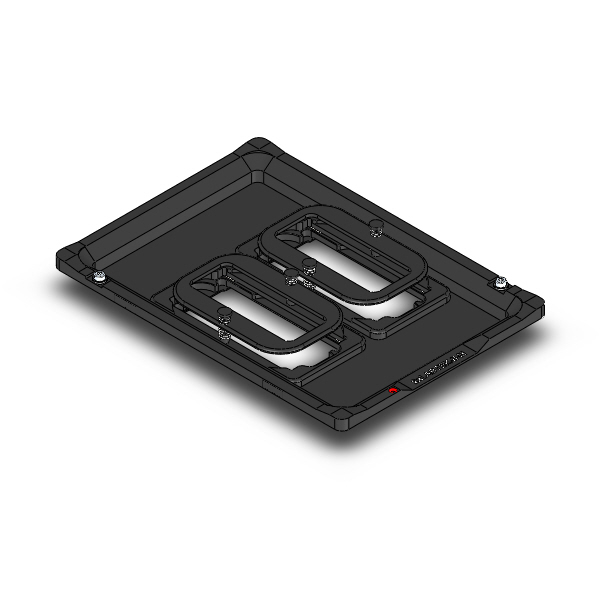

H101-2xLABTEK-II-M	#2 Lab-Tek II 1x2 in. chambered cover glass

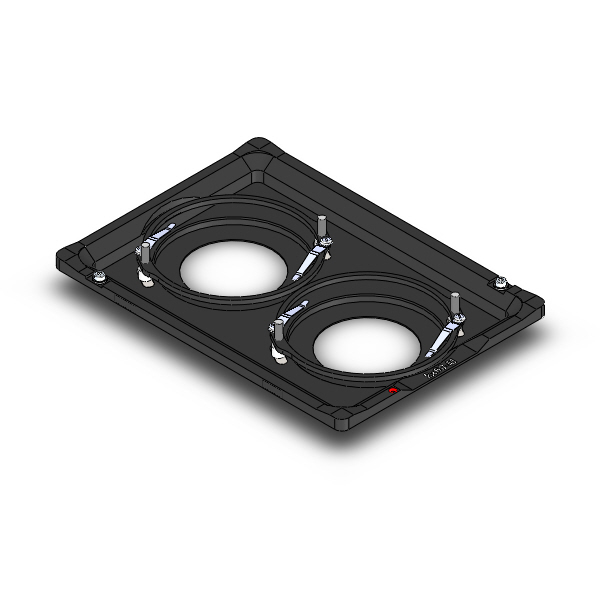

H101-2x60-M	#2 60mm Petri-dish
H101-4x35-M	#4 35mm Petri-dish
H101-GS35-M	#1 1x3in. chamberslide and #2 35mm Petri-dish
H101-LABTEK-35-M	#1 Lab-Tek 1x2 in. chambered cover glass and #2 35mm Petri-dish
H101-LABTEK-II-35-M	#1 Lab-Tek II 1x2 in. chambered cover glass and #2 35mm Petri-dish

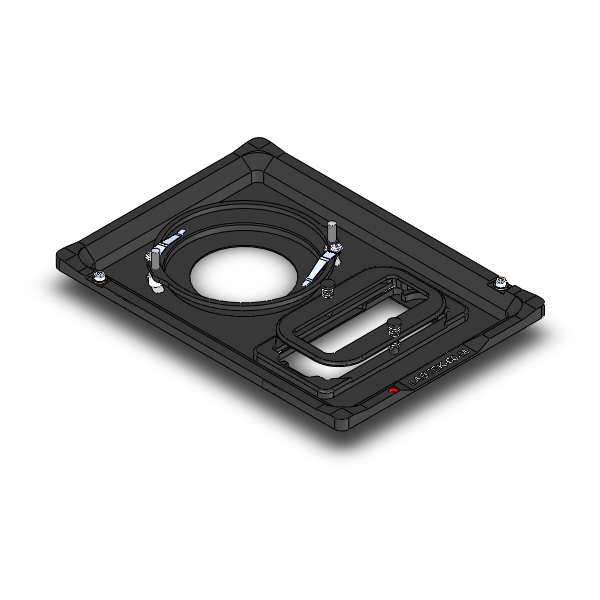

H101-LABTEK-60-M	#1 Lab-Tek 1x2 in. chambered cover glass and #1 60mm Petri-dish
H101-LABTEK-II-60-M	#1 Lab-Tek II 1x2 in. chambered cover glass and #1 60mm Petri-dish
H101-GS60-M	#1 1x3in. chamberslide and #1 60mm Petri-dish

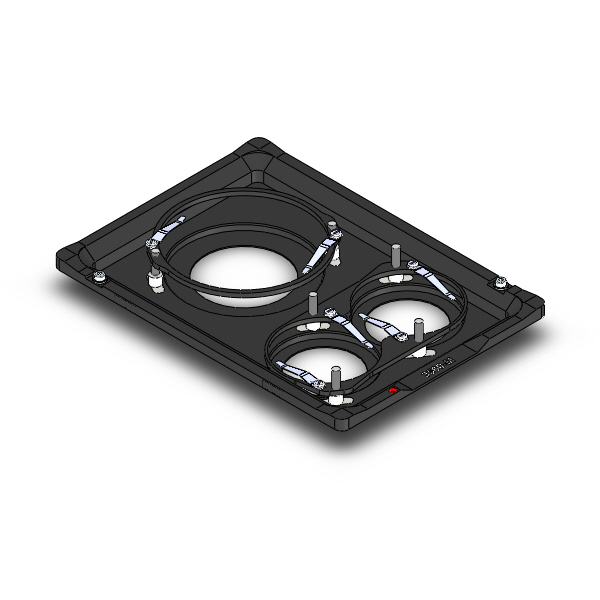

H101-6035-M	#1 60mm Petri-dish and #1 35mm Petri-dish
