H201-NIKON-TI-S-ER
Compatible with the following XY stages: Nikon TI-S-E, TI-S-ER, TI2-S-SE-E, TI2-S-SS-E. In addition it can be screwed to mechanical stages T/Ti-SR (focal plane raised by 0,5 mm) and TS2-S-SM/TC-S-SR/TC-S-SRF (focal plane raised by 1mm). For mechanical stages T/Ti-SR and TS2-S-SM/TC-S-SR/TC-S-SRF the choice of this chamber is recommended only when using multiwell plates, otherwise choose H201-NIKON-TI-SR and H201-MINI respectively.
Magnetic inserts allow to use:
- 35/60 mm Petri
- 1x3 in. / 1x2 in. chambered slides
- 6-12-24-48-96 MW plates
- It includes the fixing tool TIPA

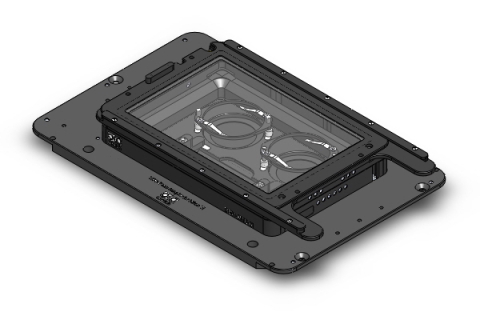

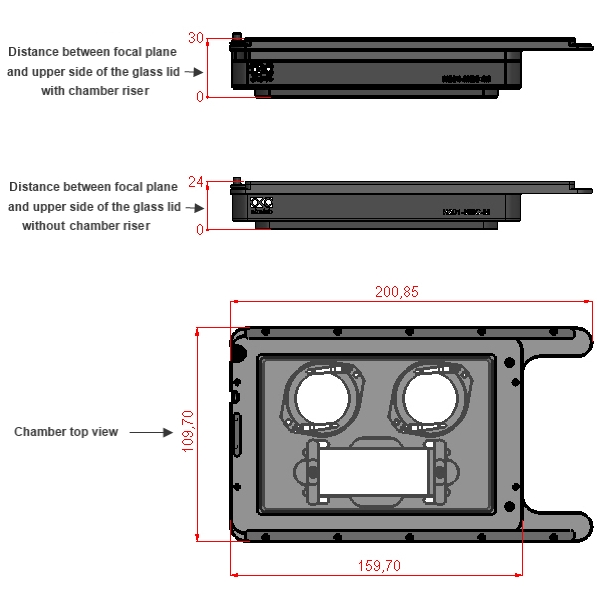

- Sliding Lid included
- 12 Perfusion holes available
Koehler illumination ?
Remove the chamber riser and use the Koehler Lid
Perfusion ?
Each chamber features up to 12 holes for inlet and outler of perfusion tubings
Different sample holder ?
Change the chamber insert. It is a 5 seconds task with the magnetic sample holders
Keep the sample in the correct position by using the Magnetic Locks
Available Inserts

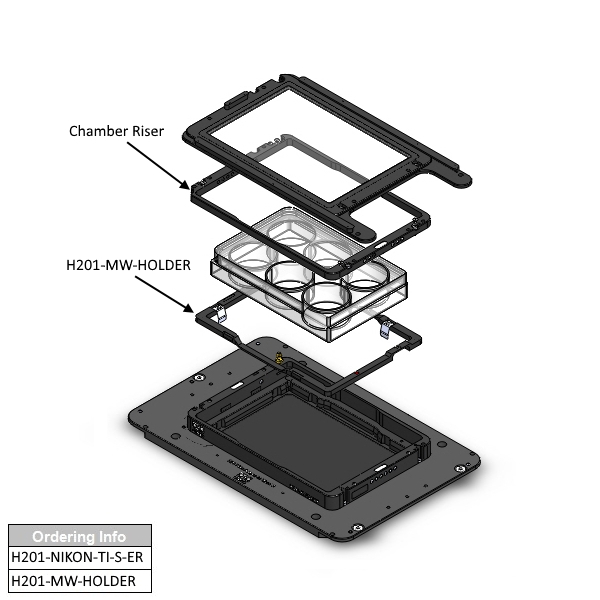

| H201-MW-HOLDER | Multiwell plates holder |   |
| 1x35-M | #1 35mm Petri-dish |  |
| 1xGS-M | #1 1x3in. chamberslide |  |
| 1xLABTEK-M | #1 Lab-Tek 1x2 in. chambered cover glass |  |
| 1xLABTEK-II-M | #1 Lab-Tek II 1x2 in. chambered cover glass |  |
| 1x60-M | #1 60mm Petri-dish |  |
| 1xT25-M | #1 Nunc and Greiner T25 flask |  |
| 2x35-M | #2 35mm Petri-dish |  |
| 2xGS-M | #2 1x3in. chamberslides |  |
| 2xLABTEK-M | #2 Lab-Tek 1x2 in. chambered cover glass |  |
| 2xLABTEK-II-M | #2 Lab-Tek II 1x2 in. chambered cover glass |  |
| 2x60-M | #2 60mm Petri-dish |  |
| 4x35-M | #4 35mm Petri-dish |  |

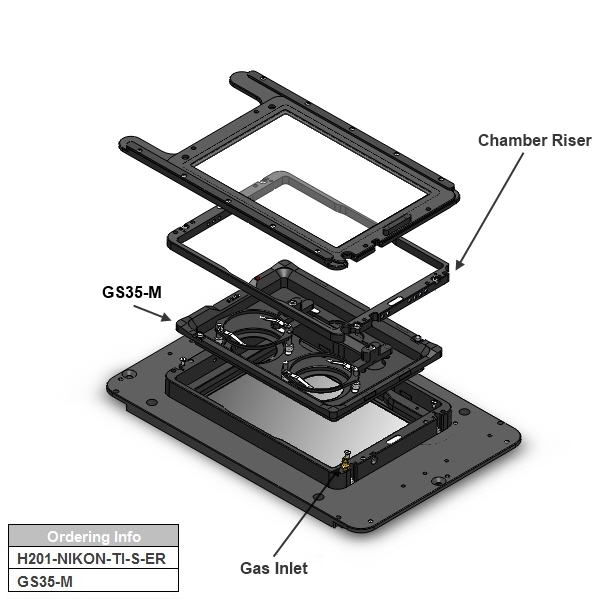

| GS35-M | #1 1x3in. chamberslide and #2 35mm Petri-dish |  |
| LABTEK-35-M | #1 Lab-Tek 1x2 in. chambered cover glass and #2 35mm Petri-dish |  |
| LABTEK-II-35-M | #1 Lab-Tek II 1x2 in. chambered cover glass and #2 35mm Petri-dish |  |
| LABTEK-60-M | #1 Lab-Tek 1x2 in. chambered cover glass and #1 60mm Petri-dish |  |
| LABTEK-II-60-M | #1 Lab-Tek II 1x2 in. chambered cover glass and #1 60mm Petri-dish |  |
| GS60-M | #1 1x3in. chamberslide and #1 60mm Petri-dish |  |
| 6035-M | #1 60mm Petri-dish and #1 35mm Petri-dish |  |

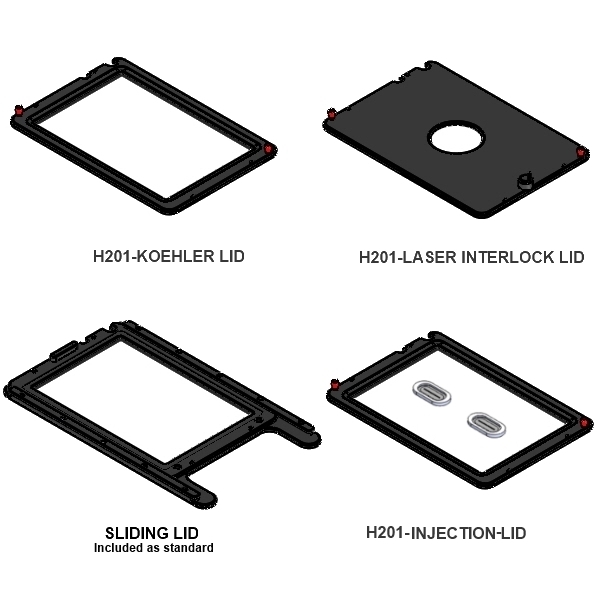

Available LIDs

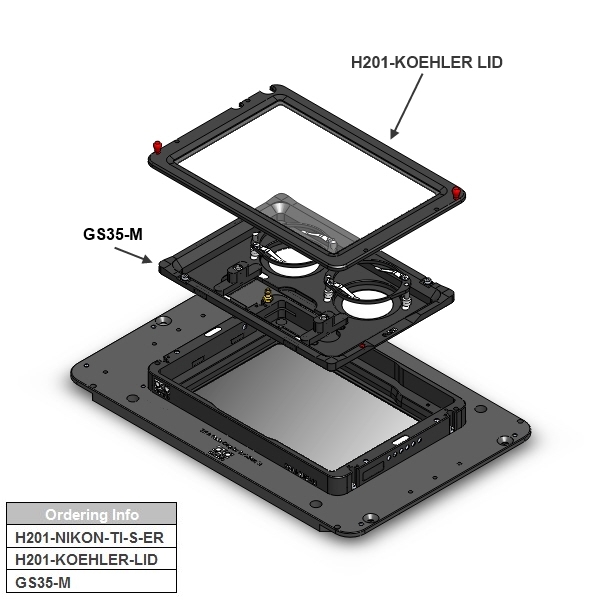

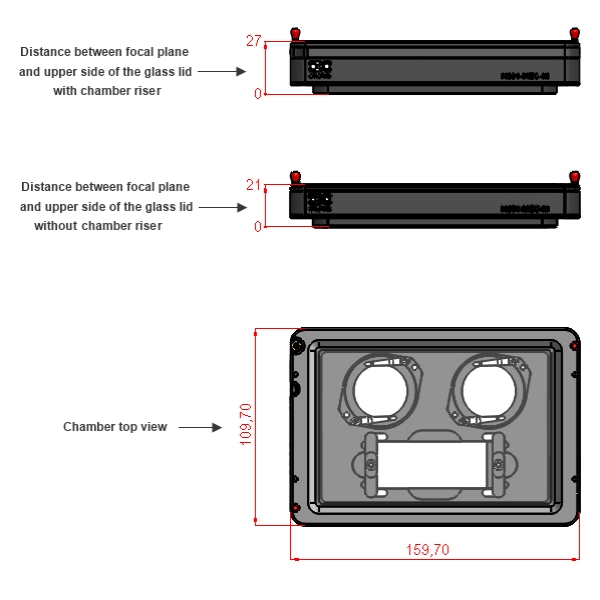

| H201-KOEHLER LID | Glass lid that reduces the height of the chamber and allows to work under Koehler illumination. Minimum condenser working distance (without chamber riser): 22mm |  |
| H201-INJECTION-LID | Glass lid with two small openings (sealed with flexible plastic) to allow injection or permanent access to the specimen Note: compatible only with specimen holder 1x35 |  |
| H201-LASER-INTERLOCK-LID | Glass lid with a safety switch that connects to the laser box. The switch turns off the laser, when the lid is lifted Note: compatible only with specimen holder 1x35 |  |
